77-01000-0006.K
Dome lights, anthracite

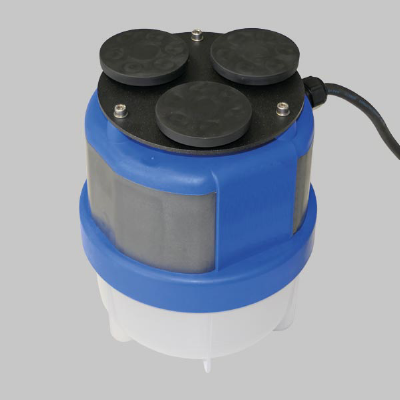

Dome luminaire. Impact-resistant and break-proof 2-component plastic housing. Cover opal, made of impact- and break-resistant plastic (polycarbonate). Uniform, soft and glare-reduced illumination. Heavy rubber power supply cable H07RN-F for high mechanical loads with mains plug. With base plate and three magnets for attachment to magnetic materials (steel girders, ship's hull, etc.)
Technical Specifications
| Diameter D | 185 mm |
|---|---|
| Height H | 230 mm |
| Weight | 2.085 kg |
| Supply cable / plug | 5 m, H07RN-F, 2 x 1,0 mm² / Typ E+F (CEE 7/17) |
| Light source | LED |
| Colour temperature | 5000 K |
| Rated luminous flux | 3600 lm |
| System power | 28 W |
| System efficiency | 129 lm/W |
| Glare evaluation RUG (4H 8H) | 26,7 |
| Beam angle |
down 141° up 180° |
| LED rated life | 25000 h (L70/B10) |
| Colour rendering index (CRI) | 80 |
| Driver | Converter |
| Control | on/off |
| Voltage | 220 - 240 V / 50 Hz, 60 Hz |
| Luminaires on B10A fuse | 27 |
| Luminaires on B16A fuse | 43 |
| Inrush current / Inrush current duration | 30 A / 105 µs |
| CIE Flux Code / CEN Flux Code | 36 65 86 85 100 |
| Type of protection | IP 54 |
| Protection class | II |
| Filament test | 650 °C |
| Impact resistance | IK07 |
| Ambient temperature | -20 °C to + 30 °C |
| Safety marks | D-mark |
| Conformity mark | CE |
